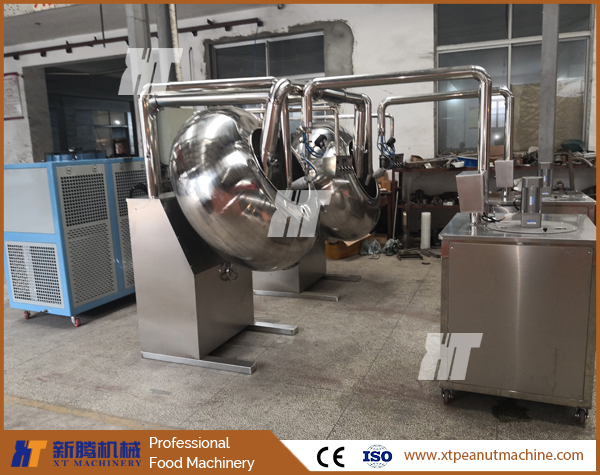

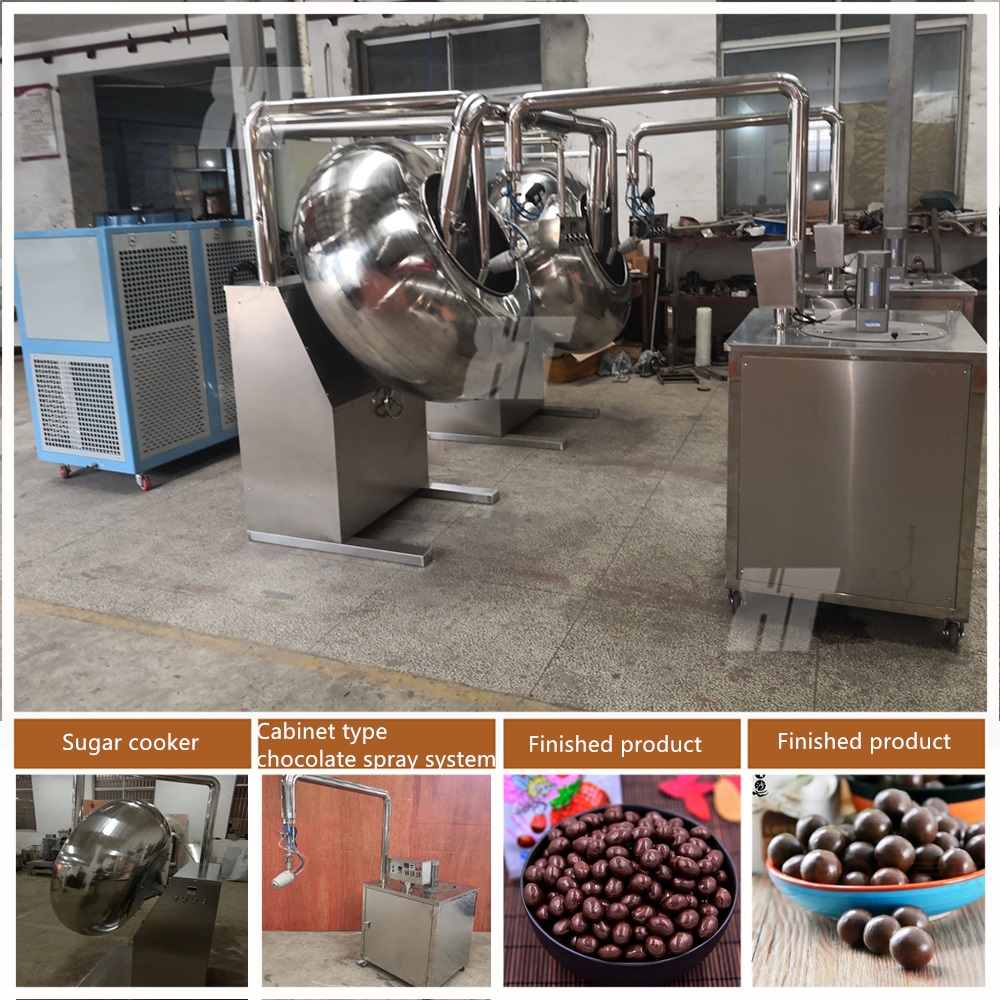

Nuts Chocolate Coating Machine

Product Name: Nuts Chocolate Coating Machine With Polish

Material: SUS304

Capacity: 50-70 Kg/time

Output Product: Chocolated Peanut

Heating Method: LNG/LPG Gas, Electricity

Warrenty: 1 Year

After Warranty:Video Technical Support, Online Support, Spare Parts

Application: Wheat, Vegetables, Corn, Fruit, Nuts, Soybean

Inquire Now

Description

*Description:

This Chocolate Coating Machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.Such as:chocolate polishing, peanut coating, sugar coating,seasoning, producing tapioca pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.

1. Sugar Coating Machine

This machine is mainly used for makingpellet, coating film on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.

Such as:chocolate polishing, peanut coating, coating sugar, adding flavor, producing pearl dumplings, and pelletizing the desiccant& aluminium hydroxide, porcelain ball making, etc.

This machine consists of main body, worm wheel box, coating pan, heating device, blower, blower, electrical equipment, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt make the coating pan rotate.Then the material erithe and revolve up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.

Model	Dia sugarcoating dish(mm)	Capacity kg/time	Rotation Speed(r/min)	Power of Motor(kw)	Power of Fan(KW)	Power of Heat(KW)	Overall Size(mm)	Weight(KG)
BY1000	1000	50-70	32	1.5	0.12	3	11001000 1560mm	220KG

Cabinet Type Chocolate Spray System

1. Double layer insulation bucket with scraper board,

2. With heat preservation chocolate pump conveying system,

3. Hot water circulation insulation system of material pipe and trachea;

4. Specialized spray gun system with timed spray double layer insulation chocolate,

5. Stainless steel frame with wheels.

The cylinder volume	Mixing motor	Chocolate pump power	Power of Heat(W)
30L	370W	750W	3000W

Air cooler

Choose imported high quality fan, and after scientific selection, as well as the use of computer selection software, so the fan efficiency is high, low noise, reliable performance, can ensure the air volume and pressure head, fan bearings using lithium grease, conventional long-term operation without adding lubricating oil

The throttling mode is controlled by external equilibrium thermal expansion valve, which has a wide range of temperature regulation, automatic control of refrigerant flow, stable operation of the unit and optimal energy efficiency ratio. Compared with the capillary throttling widely used in the market at present, it has incomparable advantages.Using combined sheet metal structure, easy maintenance and internal cleaning, according to the condensation fan outlet direction, scientific punching heat dissipation hole on the sheet metal, with the role of heat dissipation and beautiful machine

Model	Weight	Power(KW)	Power	Size (mm)
LF-02	71 kg	2.06kw	1N- 220V-50HZ	5204701100

Chocolate coating machine, Peanut Coater Mixer Pan, Nuts Chocolate Coating Machine with Polish, Chocolate coating machine, Peanut Chocolate coating Machine
