Multifunctional Continuous Nut Roaster

Model: Continuous Nuts Roaster

Voltage: 380±10V/50HZ

Capacity: 300kg/h, 500kg/h, 1000kg/h, 1500kg/h,2000kg/h

Driven Method: Chain

Heating Method: Gas/Electricity

Noiselevel: ≤75db

Description

※Description:


Multifunctional Continuous Nut Roaster provides equal heating and even hot air distribution, adopt alternate heating both from bottom and top, hence multifunctional peanut roaster can guarantee the premium roasting quality, correct color and proper moisture ratio.
Multifunctional nut Roaster can dry & roast all kinds of nuts, granulated snacks, it mainly contains automatic feeding system, heating device, transferring conveyor, cooling fan and vibrating discharger. With a recycle conveyor moving, the raw materials will be fed in, dried & roasted by the hot air evenly, finally optimized products are obtained at end of roaster with air temperature. Due to nuts stay on the tray to move forward, continuous roaster is also called conveyor roasters.
For this Multifunctional nut Roaster we provide engineer oversea service for guiding installation, debugging, training, maintenance and continuous technical support.


※Name of Every Parts:

1. Cooling section    2.  Burner 1     3. Burner 2     4. Circulation Blower    5. Moisture exhaust blower   6. Rosting section 1    7. Roasting section 2   8. Preheating section   9. Isolated section


Application

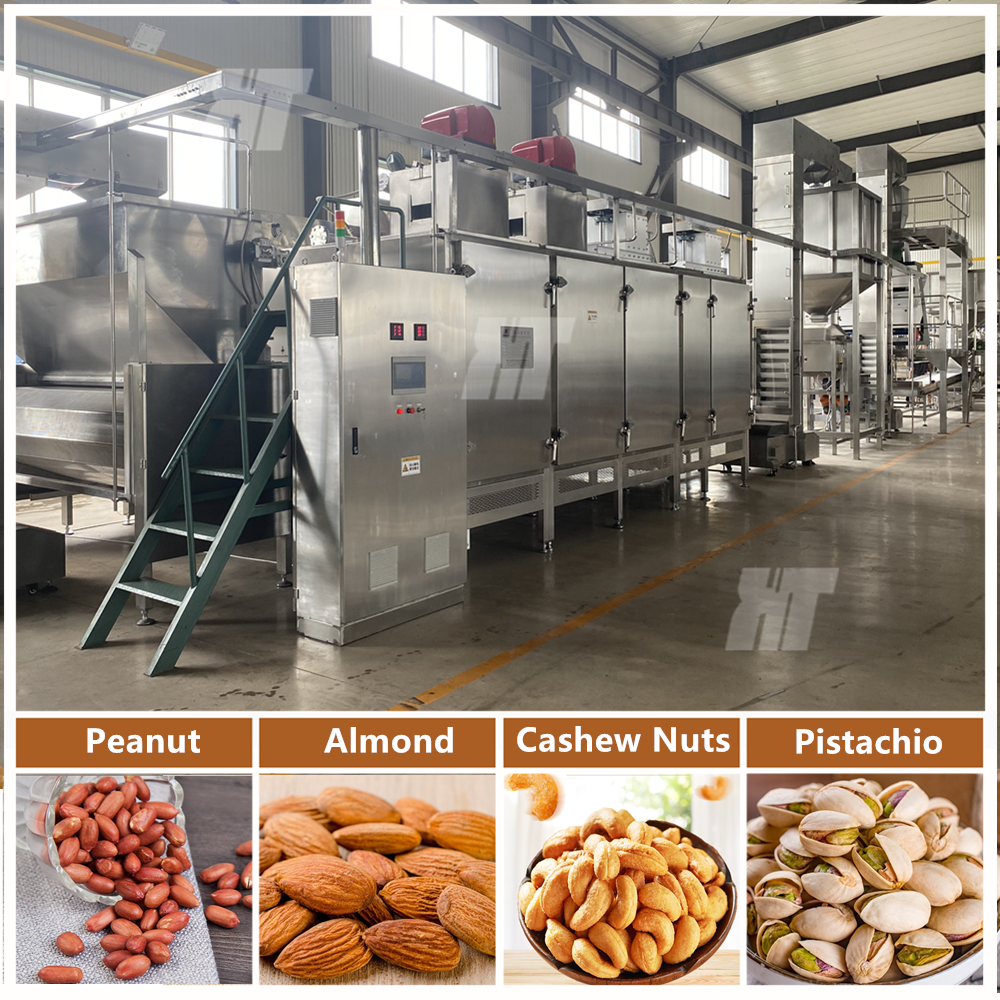

Peanuts, Sunflower Seeds, Pumpkin Seeds, Cashew Nut, Horse Beans, Almonds, Walnuts, Hazelnut Pistachios, Pine Nuts, Pistachios etc.


Features

1.It reduces the labor, improves operating efficiency.
2.It has reasonable heat distribution design to circulate the hot airflow passing through the material both up and down, hence optimizes the roasting resulting.
3.It is matched with humidity exhausting fan to discharge the moisture, the fan motor/triangle belt/bearing and mounting base are durable for long time operation.
4.It has unique cooling system to lead cool air within final section of peanut roaster, bring the material temperature down to air temperature.
5.It has facility designed to realize the recirculation of roasting air, hence decreases the energy consumption.
6.Every door on both sides can be opened for easy cleaning.
7.Different areas are insulated and sealed entirely in order to make heat loss minimum, and reduce running cost.


Technical data

Model nameCapacity (KG/Hr)Voltage (V)Driven methodHeating methodNoiselevel
GasElectricity
(dB)
DGNKX-730050014.6kw/ 380±10V/50HZChain≤75
DGNKX-7800100023kw/ 380±10V/50HZChain
≤75
DGNKX-11600200044kw/ 380±10V/50HZChain
≤75


No
Item
DGNKX-7300
DGNKX-7800
DGNKX-11600
DGNKX-13000
1
Power
14.6kw
22.6kw
22.6kw
36kw
2
Capacity
500Kg/h
1000kg/h
1000kg/h
2000kg/h
3
Roasting Temperature
0°C to 180°C
4
Heating way
LPG/GAS/ELECTRIC
5
Conveyor speed
adjustable
6
Material thickness
6-10cm
7
Gas supply Condition
Gas burning pressure :3-7kpa
gas pipeline pressure:20-50kpa
8
Installation Dimension
10.3*2.4*2.9m
10.8*4.15*3.8m
14.6*2.4*2.9m
16*4.15*3.8m
