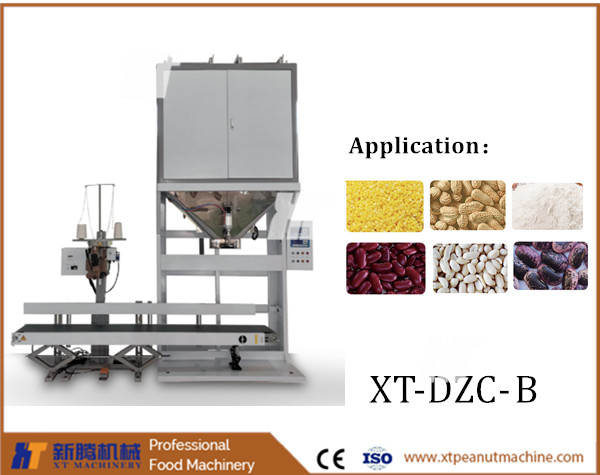

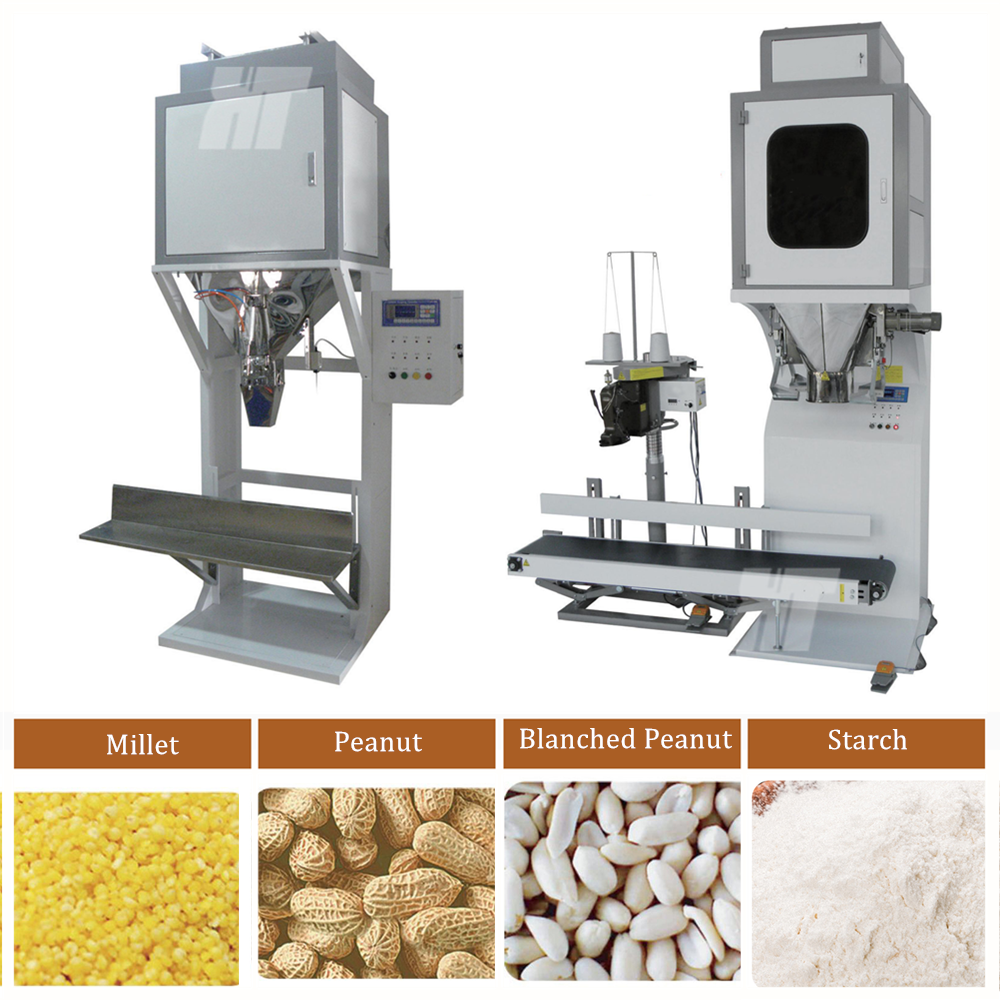

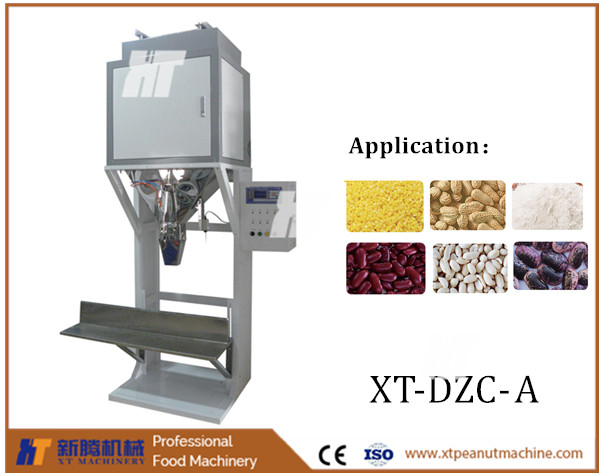

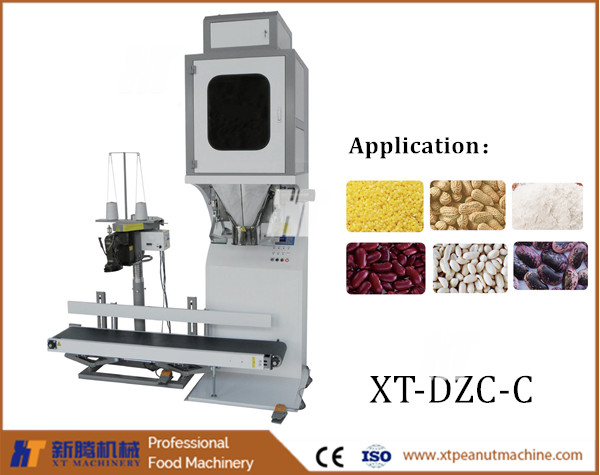

Electronic Quantitative Weigher

Name: Electronic Quantitative Weigher

Application: suitable for quantitative packaging of granules and powders in rice, seeds, sugar, food and other industries

Inquire Now

Description

※Description:

Automatic quantitative packaging scale is applied to automatic quantitative packaging for industrial and agricultural automated production, and the whole weighing process is controlled by computer and completed automatically.

It is characterized by fast weighing speed, high weighing accuracy, labor-saving, man-saving, simple operation and easy maintenance.

※Application:

suitable for quantitative packaging of granules and powders in rice, seeds, sugar, food and other industries

※Feature:

1, high degree of humanization: can be set according to user needs on a variety of parameters, over the difference of the automatic alarm, in order to meet the new control functions also has a power outage parameter protection function, quantitative control instrumentation with parameter backup and recovery functions, etc., reserved communication interface, at any time can be accessed to the production management system;

2、Using single-sided double feeding mode, adjustable range, fast feeding speed, high precision;

3、Using double meter control, long service life, one meter failure, the other side can still be produced;

4、Main pneumatic parts adopt German Festo brand, more stable quality and longer service life;

5. The conveyor adopts customized sewing head, the first fiber-optic sensing technology in China, automatic sewing and cutting line automatically, the length of the line is controllable, manual sewing can also be realized, and frequency conversion speed control ensures the sewing line is smooth and beautiful;

6. Stainless steel is used in contact with materials to ensure that the production meets the requirements of hygiene standards;

7. The total package weight and the number of bags will be accumulated;

8. With weighing, bag unloading and bag clamping process chain control function;

9. With automatic and manual adjustment conversion function;

※Technology parameter:

Specification	XT-DZC-A	XT-DZC-B	XT-DZC-C
Weighing Range(kg)	1-5	10-50	25-60
Weighing Speed(bag)	400-700 (based on the rice material)	500-800 (based on the rice material)	300-500 (based on the rice material)
Weighing Speed(bag)	depending on the feature and quantity of material packed
Scale lnterval(g)	5	5	10
Accuracy Grade	x(0.2)	x(0.1)	x(0.1)
Power Supply	1/N/PE AC220V 50HZ 0.35kw	3/N/PE AC380V 50HZ 1.2kw （Including conveying sewing machine)	3/N/PE AC380V 50HZ 1.4kw （Including conveying sewing machine)
Air Supply	0.4-0.6MPa 1㎡/h	0.4-0.6MPa 1.8㎡/h	\
Outside Dimension(mm)	2375	3310	3240

Electronic Quantitative Weigher, Electronic Quantitative Weigh Machine, Electronic Quantitative Weigh Machinery, Packing Machine
