Peanut Butter Grinding Machine

Name: Peanut Butter Grinding Machine

Model: JMS-130 JMS-180

Capacity: 100kg/h ,200kg/h

Power: 11kw, 18.5kw

Fineness:150-160 meshes

RPM:2930

Weight: 400kg, 420kgs

Size:975*456*1054mm, 981*476*1124mm

Output products: Peanut Butter

Inquire Now

Description

※Description:

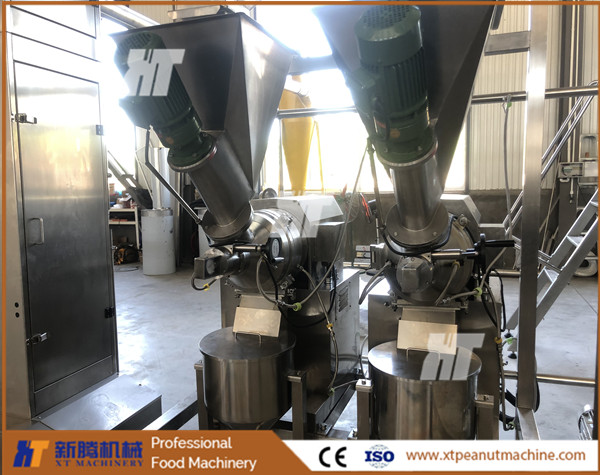

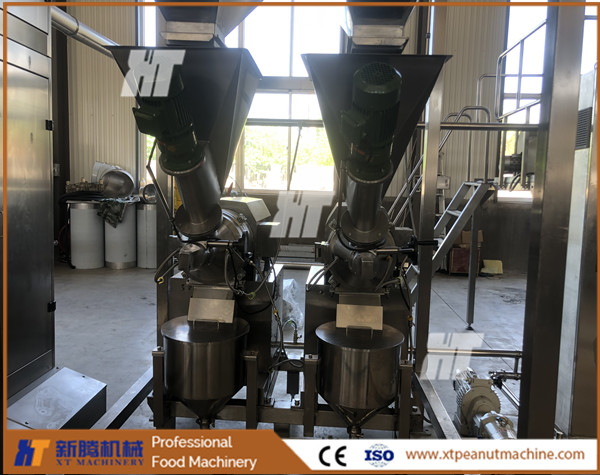

Peanut butter grinding machine is made up of rotating tooth, still tooth, impeller, drive motor, etc. Concentrate the performance of homogenizers, grinding machine, mixer, and other machinery and performance in one, with the advantages of compact structure and fine grinding. Peanut will be processed with high temperature baking, peeling, grinding into original peanut butter, add stabilizer to make stable type peanut butter, add flavor material to make peanut butter flavor, it is the ideal equipment for peanut butter processing.

Peanut Butter Grinder is a kind of wet processing of ultrafine particles reduction equipment. It integrates multifunction of pre-milling, grinding, emulsifying, mixing all together in one grinder. Peanut Butter Grinder is wet milling of fluids and high-viscosity liquid and emulsions, both oily and wet type nuts and fruit can be processed. Peanut Butter Grinder has 3 stage grinding, they are primary grinding, fine grinding and ultrafine grinding, through adjusting the gap of grinding parts, peanut grinder can reach to superior optimized grinding effect once.

Peanut butter making machine combines various properties of homogenizer, ball mill, three-roller, shearing machine, mixer, etc. It has superior effects of superfine pulverization, dispersing emulsification, homogenization and mixing.

Through the different movements of the stator and the relative movement of the rotor under high-speed rotation, when the material to be processed passes the adjustable weight of the stator and rotor under the action of self-weight, gas pressure and centrifugal force, it receives strong shearing force and friction.

The combined force of impact force, high-frequency vibration, etc., is effectively crushed, dispersed and emulsified and mixed, and the finished product has a particle size of 2-50 microns. Homogenization is higher than 90%.

※Application:

Peanut butter, sesame butter, almond butter, cocoa butter, sunflower seed paste, walnuts paste, pepper paste, tomato paste

※Feature:

1. It has such excellence as follows: well-designed, simple operation, low noise, easy servicing, small in size, corrosion resisting, wide-range use etc.
2. The main parts of this machine are made of high grade stainless steel which is nonpoisonous land corrosion-proof.
3. All critical parts of this machine are processed with advanced technique. The annular clearance may be microadjusted by means of adjusting mechanism and an index dial is prepared.
4. This Machanism can be easily controlled and the quality of products will be ensured satisfactorily.
5. According to the different use, the different materials and hardness of grinders can be easily assembled or disassembled and cleared.
6. This machine runs very smoothly and steadily
7. We have series assortment of goods to choose form including mills with cooling or heating system at user’s desire.

※Technical data:

Model	Capacity Kg/h	Power kw	Fineness (meshes)	RPM	Weight /kg	Size(mm)
JMS-130	100	11	150-160	2930	400	9754561054
JTM-180	200	18.5	150-160	2930	420	9814761124

Peanut Butter Production Line, Peanut Butter Grinding Machine, Peanut Butter Grinder, Peanut butter making equipment, Peanut Paste making machine, Peanut Sauce Making Machine
