Peanut Sieving Machine/Grading Machine

Capacity: 2-3ton/h, 4-6ton/h, 6-8ton/h

Voltage: 380v/50hz

Power: 1.5kw, 2.2kw, 4.75kw

Layer Available: 3/4/5/6

Application: Long shap Peanut Kernel & Round Shape Peanut Kernel

Inquire Now

Description

※Description:

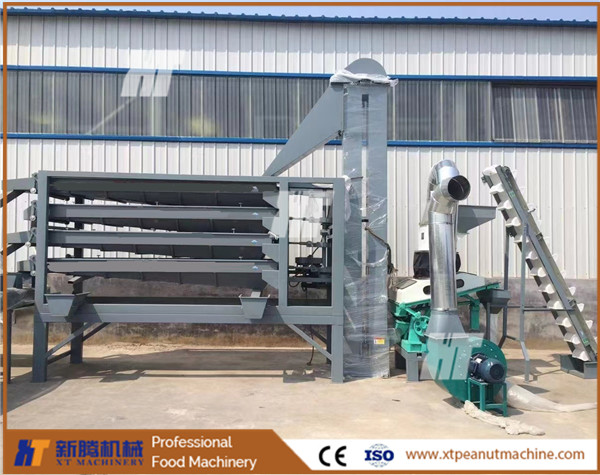

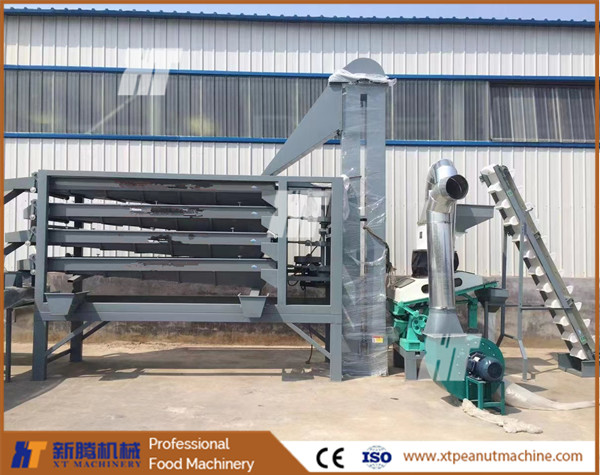

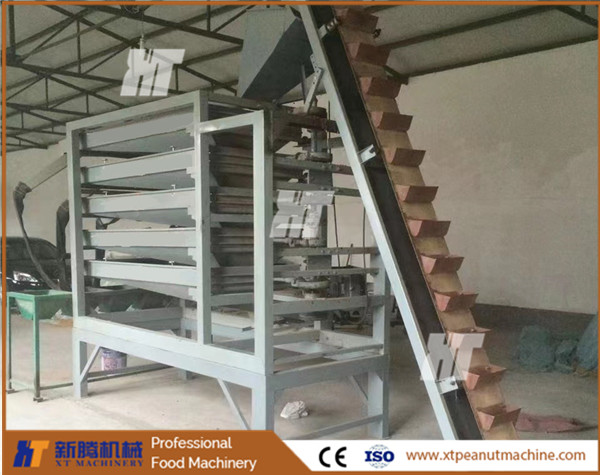

Peanut sieving machine is primary equipment which is used to grade different specification peanut kernels. Peanut sieving machine is a full set of included hopper, elevator, peanut sieving machine, supporting base, finished peanut collector etc. 3/4/5 layers are available, including the sieving residue, 4-5 grades can be sorted out once.

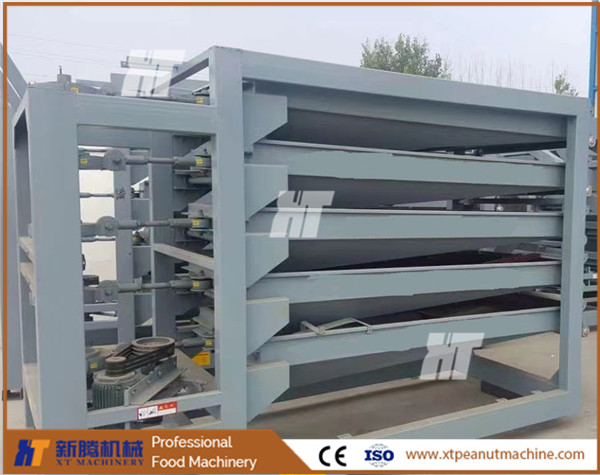

The peanut screening machine is adopted sprocket and chain driven to push rod, sieving body can reciprocating sieve smooth, sieve sheet is made of iron punching, there are returning material board in each layer sieving body. Make the material which above the sieve sheet through whole screening, avoid the material fall down lower levels without sieving in middle or front and make wrong grade. It have certain inclined in each sieving body front and back. material can flow smoothly.

※Application:

Devide the Nuts/Peanut into different size

※Data:

Long Shape Peanut Kernel	24/28,28/32,34/38,38/42,42/46,45/55
Round Shape Peanut Kernel	25/35,35/40,40/50,50/60,60/70,70/80,80/90,90/100

※Features:

a. Compact structure
b. High efficiency
c. Easy to use
d. Low maintenance

※Technical data:

Model	SX-800	SX-1000	SX1200
Capacity(kg/h)	2~3	4~6	6~8
Power (kw)	1.5	2.2	4.75
Valid Screen Size(mm)	785× 2275	985× 2275	1230× 2700
Layer Available	3/4/5	3/4/5/6	3/4/5/6

Peanut Grading Machine, peanut grader, peanut, Sieving Machine
