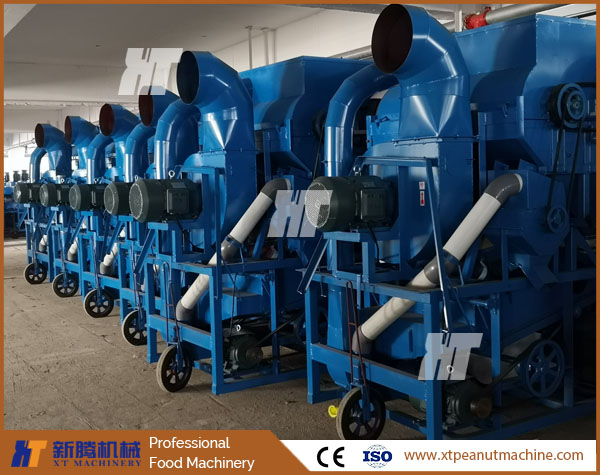

Peanut Shelling Machine/Peanut Sheller TK-2000

Name: Peanut Shelling Machine

Composition:  Peanut Shelling Machine& Peanut De-stone Machine

Model: LY-2000

Capacity:2000kg/h

Voltage: 380v 50hz 3 phases

Power: 11.5kw

Shelling Rate: 99%

Breaking Rate:2%

Weight:1200kgs

Description

Description:

The peanut shelling machine is composed of frame, air fan, rotors, single-phase motor, two sizes screens, feeding hopper, vibration sieving screen, V-belt wheel and transmission V-belt. After the machine started, the peanuts are put into the hopper in a quantitative, uniform and continuous manner. The peanut shells are broken under the constant impacts of the rotor, friction and collision.

Peanut kernels and broken peanut shells pass through a sieve with a certain aperture under the rotating wind pressure and blow of the rotor. Peanut are shelled and pass a large size screen for the first time, light peanut shells are blown away, smaller peanuts are sieved and collected for a second time shelling. Peanut shells and grains are blown by the rotating fan, and the light-weight peanut shells are blown out of the machine. The peanut grains are screened by a shaker to achieve the purpose of selection. Then, the sorting surface goes down, flows into the lifting device through the returning port, and is sent to the rear drum by the air lifting device.

The peeled peanut and shell fall through the rear arc grille, and are selected by the fan again. The specific gravity sorting sieve will further select qualified peanut and make sure all peanut are shelled.


Application:

Peanut



Composition:

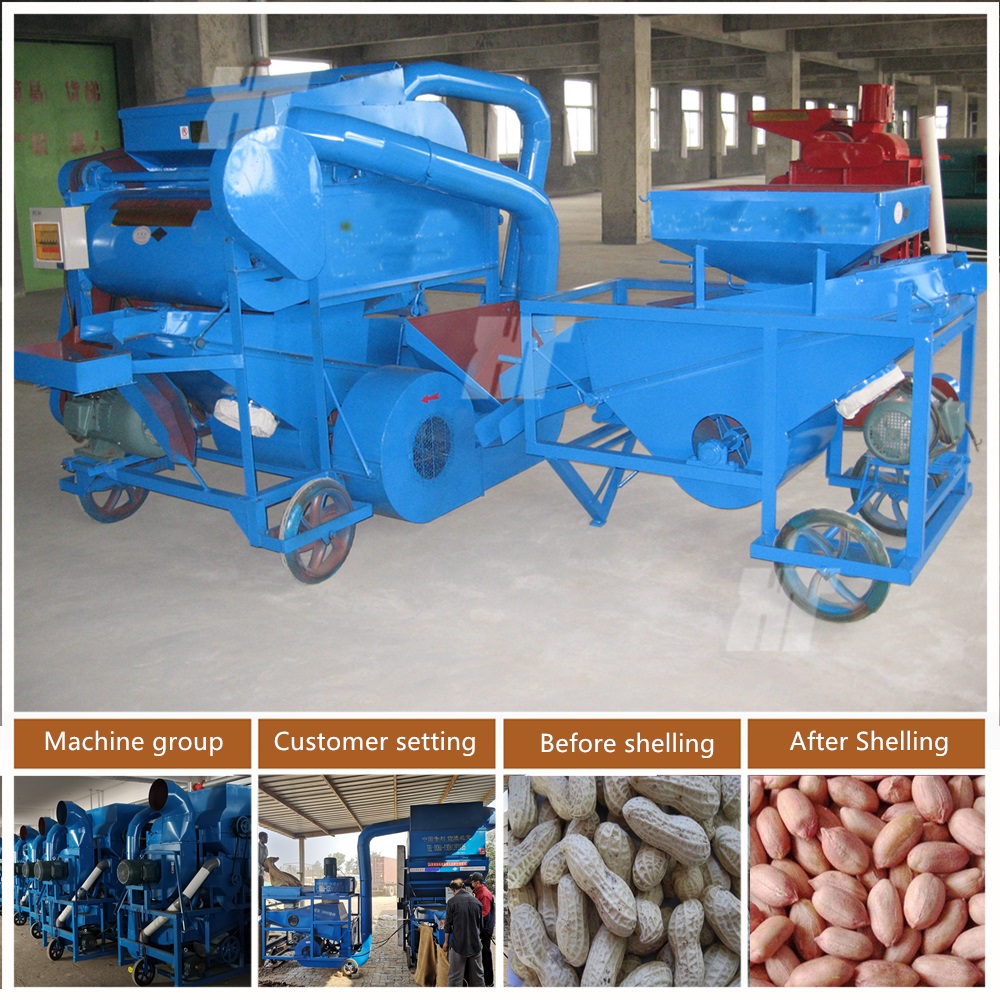

1. Peanut Shelling Machine

2. Peanut De-stone machine



Features

Stable performance & strong durability

High efficiency & minimum split ratio

Easy operation & low maintenance

Peanut sheller increases productivity and saves manpower, it promotes the raw peanut processing from family to industrial scale.



Technical data:

ModelLY-800LY-2000LY-3000LY-5000
voltage380v 50hz 3 phases
power7.7kw11.5kw21.5kw31.5kw
China peanut Capacity800-1000kg/h2000kg/h3000kg/h5000kg/h
Peeling rate99%99%99%99%
Breaking rate2%2%2%2%
HS CODE84386000843860008438600084386000
Weight800KGS1200kgs1350kgs1550kgs
